Introduction
How to install a fingerprint door lock? Tired of digging through your bag for keys every time you get home? That’s exactly why so many homeowners are ditching the traditional deadbolt for this upgrade. It’s straightforward — no wiring expertise needed, just a screwdriver and about 30 minutes. In this guide, you’ll walk through the full installation process, from prepping your door to setting up your first fingerprint, so you can get it right the first time.
Table of Contents
What You Need Before You Start the Installation
Before you install a fingerprint door lock, you need four things ready: a Phillips screwdriver, a tape measure, your door’s current backset measurement, and about 30 minutes of uninterrupted time. Skipping this prep step is the single biggest reason DIY installs go sideways.
Most fingerprint door locks are designed for standard US doors, but “standard” still has some variation you need to check first. Measure your door’s thickness — the majority of models fit doors between 1-3/8″ and 2″ thick, so anything outside that range needs an adapter kit, which most brands sell separately. Next, check the backset, which is the distance from the edge of the door to the center of the existing hole where your knob or deadbolt sits. This is almost always either 2-3/8″ or 2-3/4″ on American doors, and getting this number wrong means the bolt won’t line up no matter how carefully you mount everything else.
Here’s a scenario that trips up a lot of first-time installers: you order a lock, get everything unboxed, and realize your door has a backset that doesn’t match the mounting plate. If you’re replacing an older mechanical deadbolt, take five minutes to actually measure rather than assuming it’ll match — a $40 mistake here is completely avoidable.
Your basic toolkit for this job:
- Phillips and flathead screwdrivers (usually included in the box, but a personal set is faster to work with)
- A tape measure or ruler
- A pencil for marking screw holes
- 4 AA batteries (check your model’s requirement — some use different sizes)
- The paper drilling template that ships with almost every fingerprint lock
If you’re still deciding between a fingerprint model and other smart lock styles, it’s worth comparing how smart locks stack up against traditional deadbolts before you commit to a specific installation — the prep work differs slightly depending on whether you’re upgrading an existing smart lock or replacing a standard key-and-tumbler deadbolt.
Once you’ve confirmed your door thickness, backset, and tools are on hand, you’re genuinely ready to start removing the old lock — which is where the real installation begins.
Step 1: Remove Your Old Door Lock
Taking out your old door lock comes down to three quick moves: loosen the screws on the interior plate, pull the knob or deadbolt free from each side of the door, then lift the latch mechanism out of the door edge. Even someone doing this for the very first time can usually finish this part in well under 10 minutes.
Before you install a fingerprint door lock, the existing hardware has to come out cleanly, and the order you work in matters. Doors typically have two connected pieces — the exterior knob or keypad, and the interior thumb-turn or plate — held together by two long screws that run through the door itself. Loosen those screws first, and the whole assembly usually separates in your hands without any force needed.
Here’s the step-by-step breakdown:
- Unscrew the two visible screws on the interior side of the door (these hold the lock body together)
- Pull the exterior and interior pieces apart and set them aside
- Remove the latch mechanism from the edge of the door — it’s usually held by two small screws in the strike plate
- Slide the latch bolt out of the door edge once the screws are loose
- Unscrew and remove the strike plate from the door frame if you’re replacing it too
- Check the door edge and frame for leftover screws or shims before moving forward
A common situation worth mentioning: older deadbolts sometimes have a stuck or painted-over strike plate, especially in homes with doors that haven’t been touched in 10-15 years. If yours won’t budge, a flathead screwdriver gently wedged under the plate usually breaks the seal without damaging the wood.
This is also a good moment to inspect the door itself. If you notice the existing holes are stripped, cracked, or don’t match your new lock’s template, it’s worth checking our guide on what to do when a door lock gets stuck in place — the same door damage that causes locks to jam can also make removal trickier than expected.
Once the old hardware and strike plate are out and the door edge is clear, you’re ready to prep the door for your new fingerprint lock.
Step 2: Prepare the Door for the New Lock
Preparing the door means checking that your existing holes match the new lock’s template, and drilling new ones only if they don’t. Most fingerprint door locks are built to fit standard pre-drilled holes, so in the majority of installs, no drilling is needed at all.
The paper template that ships with your lock is the most reliable tool at this stage. Tape it directly over the existing holes on your door — if the circles line up with your current cross-bore (the large hole for the lock body) and edge-bore (the smaller hole for the latch), you can skip straight to mounting. This is the case for roughly 8 out of 10 standard interior and exterior doors in US homes, since most builders use the same 2-1/8″ cross-bore size industry-wide.
When You Actually Need to Drill
Drilling becomes necessary in a few specific situations, and it’s worth knowing which one applies to you before picking up a power drill:
- Your door previously had a knob-only setup with no separate deadbolt hole
- You’re upgrading from a lock brand that used a non-standard hole pattern
- The door is new or unbored and has never held a lock before
- The existing hole size is smaller than the 2-1/8″ standard most fingerprint locks require
If drilling is required, use a hole saw bit sized to your template’s markings, and always drill from one side until the pilot bit tip pokes through, then finish from the opposite side. This two-sided approach prevents the wood from splintering, which is a common problem when people try to drill straight through in one pass.
Checking Door Thickness Before You Commit
Door thickness compatibility matters just as much as hole alignment. Fit issues at this stage almost always come down to a thickness mismatch — check your measurement against your specific lock model’s compatibility range, since this varies by manufacturer and was already covered in the prep checklist earlier in this guide. If your door falls outside the supported range, look for an extended screw kit before assuming the lock won’t work for your setup.
If you’re dealing with a less common door type, like a sliding or glass panel door, the prep process looks different from a standard wood door, and it’s worth checking our breakdown on installing smart locks on sliding glass doors before you proceed further.
Once your holes are aligned and thickness is confirmed, the door itself is ready — the next step is mounting the actual lock hardware.
Step 3: Mount the Exterior and Interior Panels
Mounting the lock means fitting the exterior fingerprint panel through the door first, then attaching the interior panel over the connecting wires and securing both with the included screws. This step usually takes 10-15 minutes once your holes are prepped correctly.
Start with the exterior panel — slide its spindle and connector cable through the cross-bore hole from outside the door. On the interior side, thread that cable into the matching port on the interior panel before pushing the two halves together against the door. This wiring connection is what lets the fingerprint sensor communicate with the motor that turns the deadbolt, so a loose connection here is the most common reason a lock feels “installed” but doesn’t respond. Home improvement resource This Old House also notes that this same wiring step is where most electronic deadbolt installations either come together smoothly or run into early trouble.
Once connected, secure both panels with the long mounting screws, tightening evenly on each side rather than fully tightening one screw before starting the other — this keeps the panel flush against the door instead of sitting at an angle. Then install the battery compartment, usually located on the interior panel, and insert the batteries before testing power.
One thing worth remembering: if the panel resists instead of settling flat against the door, stop tightening the screws right away — ease off and double-check that both cross-bore holes actually line up before trying again.
With both panels mounted and powered, you’re ready to move into fingerprint setup and registration.

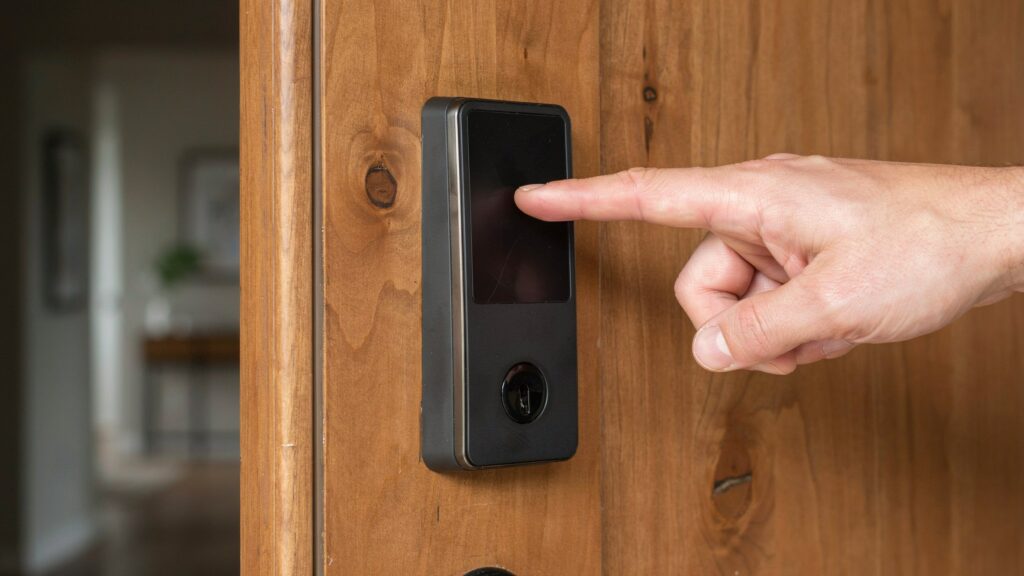

Step 4: Set Up and Register Your Fingerprints
Setting up your fingerprint door lock means entering the admin menu, registering each user’s print through the sensor, and testing it a few times before relying on it daily. Most locks let you complete this in under 5 minutes per fingerprint.
Power on the unit and enter the default admin code (found in your manual) to access setup mode. From there, select the “add fingerprint” option and place your finger on the sensor as prompted — usually 3 to 5 times from slightly different angles, so the system builds a complete map instead of just one flat scan. This is the same reason phone fingerprint sensors ask for multiple touches during setup: a single scan often misses edge details that matter when your hand is wet, cold, or angled differently at the door.
A few practical points worth knowing:
- Most models support 10-20 stored fingerprints, which covers a typical household plus a few trusted guests
- Register at least two fingers per person (index and thumb are common choices) in case one finger gets scanned less reliably due to dryness or a minor cut
- Test each new fingerprint 3-4 times immediately after enrolling, since a print that fails right away almost never improves on its own
Adding backup users follows the same enrollment process, just repeated for each household member. If someone’s fingerprint isn’t reading consistently, an over-locked or misaligned strike plate is sometimes the real issue, not the sensor itself — worth ruling out using our guide on door locks that get stuck in place before assuming the lock is faulty.
Once your fingerprints are registered and tested, your fingerprint door lock is ready for daily use.
Real-World Tip: What Actually Trips People Up During Installation
The single biggest reason a fingerprint door lock feels “off” after installation isn’t the sensor — it’s a misaligned strike plate. If the bolt doesn’t slide into the strike opening without resistance, the motor works harder every time you lock up, which drains batteries faster and can eventually strain the mechanism.
A few real patterns show up again and again during installs:
- Strike plate misalignment — even a slightly warped or shifted strike plate stops the bolt from seating cleanly, making the lock feel stiff or fail to engage
- Battery polarity mistakes — inserting batteries backward, or mixing old and new ones, is a common cause of a lock that powers on but won’t respond
- Door gaps from seasonal shifts — wood doors expand and contract with humidity, so a lock that worked fine in summer can bind slightly in winter
- Testing with the door closed too soon — always run the lock through a few full cycles with the door open first, so you catch alignment issues before they turn into a lockout
If your bolt feels like it’s grinding rather than sliding, don’t force it — back off, loosen the strike plate screws slightly, and re-align before testing again. This one adjustment resolves the majority of installation complaints people report after setting up a fingerprint door lock.
If you’ve already run into a stuck or misbehaving bolt after installation, our guide on fixing a door lock stuck in the locked position covers the exact fix for this.
How to Test the Lock Before You Rely on It
Testing your fingerprint door lock means running it through several full lock and unlock cycles with the door open before you ever close it and walk away. Skipping this step is how people end up locked out on day one.
Start by testing the fingerprint sensor at least 5-6 times per registered user, checking that each scan unlocks smoothly without a delay or false rejection. Then test the backup entry method — most fingerprint locks include a physical key override or a numeric keypad — since this is what saves you if the sensor ever fails or a fingerprint doesn’t read due to a cut or dry skin. Never skip setting up this backup; it’s the difference between a minor inconvenience and being stuck outside your own home.
A few final checks worth running before you trust the lock daily:
- Cycle the deadbolt fully locked and unlocked at least 10 times with the door open, listening for grinding or resistance
- Confirm the low-battery alert works by checking the manual for your model’s warning signal (usually a beep or flashing light at a set battery percentage)
- Test the backup key or code once, even if you plan to rely on the fingerprint sensor for daily use
- Close the door and repeat the full cycle once more to confirm real-world performance, not just open-door testing
Consumer lock hardware in the US is also independently tested for durability under ANSI/BHMA standards, which cover cycle counts and strike resistance for residential deadbolts — you can learn more about how these ratings work directly from the American National Standards Institute. Knowing your lock’s grade gives you a realistic sense of how many lock cycles it’s built to handle over time, beyond just the fingerprint feature itself.
If your lock struggles during this testing phase, it’s worth revisiting the strike plate alignment covered in the earlier section before assuming the unit itself is defective.
Final Thoughts: Is DIY Installation Worth It?
Installing a fingerprint door lock isn’t complicated once you understand where people usually go wrong — alignment, batteries, and testing before you trust it. Most homeowners can complete the job in an afternoon with basic tools and a little patience.
The real question isn’t whether you can install it yourself — it’s whether you’ll take the extra ten minutes to test it properly before relying on it every day.
FAQs
How to install a smart fingerprint door lock?
Remove your old lock, align the new one with your door’s existing holes, mount both panels, then register your fingerprint through the setup menu — most installs take under 30 minutes with just a screwdriver.
How to add fingerprint to unlock door?
Enter the lock’s admin mode using the default code, select “add fingerprint,” then scan your finger 3-5 times from slightly different angles until the sensor confirms enrollment.
How to put a fingerprint lock?
Fitting a fingerprint lock means threading the exterior and interior panels together through your door’s cross-bore hole and securing them with the included mounting screws — no drilling needed if your door already has standard holes.
Can I install a smart door lock myself?
Yes, most smart door locks are designed for DIY installation with basic tools like a screwdriver and tape measure, and don’t require an electrician or professional locksmith for a standard door.
What are the disadvantages of fingerprint door locks?
Fingerprint sensors can struggle with wet, dry, or injured fingers, and the lock still depends on batteries, so a backup key or keypad code is essential in case the sensor fails.
How much do people charge to install a smart lock?
Professional installation typically runs between $100 and $250, though pricing varies by locksmith, region, and how complex the door prep turns out to be.
What are the downsides of smart locks?
Beyond battery dependence, smart locks can be more expensive upfront than traditional deadbolts and may need occasional firmware updates or app troubleshooting.
How much does a handyman charge to install a lock?
Handyman rates for lock installation usually fall in a similar $100-$200 range, often lower than a specialized locksmith for a straightforward door replacement.
