How to Align Garage Door Sensors: Step-by-Step Guide

Introduction

If your garage door stops closing, reverses unexpectedly, or refuses to shut completely, misaligned safety sensors could be the reason. These sensors use an invisible infrared beam to detect objects in the door’s path. When the beam is blocked or the sensors lose alignment, the garage door opener may prevent the door from closing.

Learning how to align garage door sensors can help you fix this problem without an unnecessary service call. In most cases, you can inspect the sensor brackets, clean the lenses, and make small position adjustments using basic household tools. This guide explains how to identify alignment problems, adjust the sensors step by step, troubleshoot common issues, and test the safety system before using your garage door again.

Why Your Garage Door Won’t Close — The Hidden Sensor Problem

When a garage door starts closing but suddenly stops, reverses, or refuses to close completely, the safety sensors may be responsible. However, misalignment is not the only possible cause. A blocked infrared beam, dirty sensor lenses, loose wiring, or damaged mounting brackets can also prevent the garage door opener from working properly.

Most modern residential garage door openers use safety reversing sensors, also called photo-eye sensors. These small devices are installed near the bottom of the garage door tracks, usually a few inches above the floor. One sensor sends an invisible infrared beam, while the other receives it. If the beam is interrupted, the opener may stop the closing process or reverse the door to help prevent injuries and property damage.

How Misaligned Garage Door Sensors Affect Closing

Both sensors must face each other so the receiving sensor can detect the infrared beam. Even a small change in their position can interrupt the signal.

When the safety sensor system cannot detect a clear beam, the garage door opener may interpret the situation as an obstruction in the door’s path.

This can happen after:

• Accidental bumps: A car tire, bicycle, trash bin, or lawn mower may hit a sensor or its mounting bracket.
• Loose mounting brackets: Screws and brackets can loosen over time, allowing the sensors to move out of position.
• Vibrations: Repeated garage door operation can gradually affect poorly secured sensor brackets.
• Temperature changes: Seasonal temperature shifts may affect mounting materials or existing hardware, although they are not always the cause of misalignment.
• Dirt and debris: Dust, cobwebs, and moisture on the sensor lenses can interfere with the infrared beam.

Other Reasons Your Garage Door Won’t Close

Before adjusting the sensor position, check whether another problem is interrupting the safety reversing system.

• Blocked sensor path: Tools, storage boxes, leaves, or other objects may be blocking the beam between the two sensors.
• Dirty photo-eye lenses: Dust or dirt can prevent the receiving sensor from detecting the infrared signal correctly.
• Loose or damaged wiring: A disconnected wire, damaged insulation, or poor electrical connection can interrupt sensor operation.
• Direct sunlight interference: Strong sunlight hitting the receiving sensor at certain angles can interfere with the infrared signal on some opener systems.
• Damaged sensor brackets: Bent or broken brackets may prevent the sensors from staying in the correct position.

Is Sensor Alignment Always the Problem?

No. A garage door that refuses to close does not automatically have a sensor alignment problem. The issue may also involve damaged sensor components, wiring faults, an opener malfunction, or another problem with the garage door system.

Check the sensor indicator lights, inspect both mounting brackets, and make sure nothing blocks the infrared beam before adjusting anything. The meaning of each indicator light depends on the garage door opener brand and model.

If you’re unsure what the indicator light means, read our guide on Garage Door Sensor Yellow Light: What It Means and How to Fix It to understand possible causes and troubleshooting steps.

If the sensors appear damaged or the wiring is exposed, avoid touching electrical connections and arrange a professional inspection.

Correctly aligned and working garage door safety sensors are essential for the safety reversing system. Fixing the actual cause—not simply moving the sensors—helps prevent the same closing problem from returning.

What Garage Door Sensors Do (And Why Alignment Matters)

Garage door safety sensors are small devices mounted on opposite sides of the garage door, usually near the bottom of the vertical tracks. They help prevent the door from closing when a person, pet, vehicle, or object is in its path.

Most modern residential garage door openers use a pair of photo-eye sensors. One sensor sends an invisible infrared beam, and the other receives it. When the beam is interrupted or the sensors cannot communicate properly, the garage door opener may stop the closing cycle or reverse the door.

How Garage Door Safety Sensors Work

The two photo-eye sensors work together to monitor the space beneath the closing garage door.

Here is how the system operates:

• Sending sensor: Transmits an invisible infrared beam toward the opposite side of the garage door.
• Receiving sensor: Detects the infrared beam and sends the appropriate signal to the opener.
• Clear sensor path: Allows the safety system to recognize that the monitored area is unobstructed.
• Interrupted beam: Signals a possible obstruction and can cause the opener to stop or reverse the closing door.

These sensors do not physically stop the garage door. Instead, they communicate with the garage door opener, which controls the door’s movement.

Why Proper Sensor Alignment Matters

Both photo-eye sensors must face each other at the correct height and angle. If one sensor moves, the receiving sensor may no longer detect the infrared beam reliably.

Even a small alignment problem can affect normal garage door operation.

Poor sensor alignment may cause:

• The garage door to reverse before reaching the floor.
• The opener to refuse to close the door.
• The receiving sensor’s indicator light to flicker or turn off.
• The door to close only when using certain wall-control procedures, depending on the opener model.
• Intermittent closing problems that return after the sensors are disturbed.

How Garage Door Sensors Help Prevent Accidents

Safety reversing sensors are an important part of a residential garage door opener’s entrapment-protection system. They help reduce the risk of a closing door trapping a child, pet, or object underneath it.

In the United States, automatic residential garage door operators are covered by the Consumer Product Safety Commission’s mandatory safety standard under 16 CFR Part 1211. The standard addresses entrapment protection and includes requirements for external protection devices. Photoelectric sensors are a common way to provide this protection.

You can read the CPSC’s official garage door operator safety requirements for more information.

Important: Never assume that a garage door is safe simply because its sensors appear aligned. Keep the sensor area clear and test the safety reversing system according to the manufacturer’s instructions after making adjustments. A properly aligned sensor pair is only one part of a safe garage door system.

Signs Your Garage Door Sensors Are Out of Alignment

Garage door safety sensors can show several warning signs when their infrared beam is blocked, the sensors lose alignment, or a wiring problem interrupts their connection. Recognizing these symptoms helps you identify the problem before adjusting the mounting brackets.

Look for these common signs:

• Blinking or flickering sensor lights: A flashing indicator may point to misalignment, an obstruction, or a wiring problem. The exact meaning depends on your garage door opener model. Check the manufacturer’s instructions before deciding what the light means.
• Garage door starts closing, then reverses: The door may begin moving down but return to the open position when the safety reversing system detects an interrupted beam.
• Garage door refuses to close: The opener may prevent the door from moving down when the receiving sensor cannot detect the infrared signal.
• One sensor light is off: An unlit indicator can point to a power supply problem, disconnected wiring, a damaged sensor, or another electrical fault.
• Loose or bent sensor brackets: A bump from a vehicle, bicycle, trash bin, or lawn equipment can move a bracket and change the direction of the sensor beam.
• Intermittent closing problems: The door may work normally at certain times but refuse to close at others. Loose brackets, vibration, sunlight interference, or an unstable electrical connection may be responsible.
• Garage door closes only while holding the wall button: Some older openers have a manufacturer-specific constant-pressure override for sensor faults. This is not a repair or a safe way to operate the door routinely. Do not bypass the safety system.

Quick Guide to Garage Door Sensor Warning Signs

What You Notice	Possible Cause
Receiving sensor light blinking	Misalignment or blocked beam
Both sensor lights off	Power or wiring problem
One sensor light off	Loose wiring or faulty sensor
Door reverses while closing	Interrupted safety beam
Door works inconsistently	Loose bracket or sunlight interference

Important: These are general troubleshooting clues, not universal diagnostic rules. Chamberlain, LiftMaster, Genie, and other manufacturers may use different indicator lights and error signals. Always check your opener’s model-specific manual.

How to Align Garage Door Sensors (Step-by-Step Guide)

Most garage door sensor alignment problems can be corrected with a few basic tools and careful adjustments. Before starting, check your opener’s owner’s manual because sensor brackets, adjustment methods, and indicator lights vary by manufacturer.

Tools You May Need

Gather these items before beginning:

• Screwdriver or nut driver, depending on the bracket.
• Soft, clean microfiber cloth.
• Small level or straightedge.
• Tape measure.
• Flashlight for inspecting sensor wiring and brackets.

Step 1: Disconnect Power to the Garage Door Opener

Before adjusting the sensor brackets, disconnect electrical power to the garage door opener. Unplug the motor unit or switch off its dedicated circuit breaker if necessary.

This prevents unexpected operation while you are working near the moving door.

Keep these precautions in mind:

• Keep children and pets away from the garage door.
• Do not stand underneath a partially open door.
• Never loosen the garage door cables, springs, or other counterbalance hardware.
• Do not touch exposed electrical wires or terminals.

Follow the manufacturer’s safety instructions before restoring power for alignment checks.

Step 2: Locate and Inspect Both Safety Sensors

Find the two photo-eye sensors near the bottom of the garage door tracks. They are normally mounted on opposite sides of the garage door opening.

Check the following:

• Both sensors are securely attached to their mounting brackets.
• Their lenses face each other across the garage door opening.
• Neither sensor is visibly cracked or damaged.
• The brackets are not bent, loose, or pushed out of position.
• The sensor wires are not cut, crushed, or disconnected.

Most modern residential systems position the sensor beam no higher than 6 inches above the garage floor. Follow the manufacturer’s specified mounting height.

Step 3: Clean the Sensor Lenses

Dirt, dust, cobwebs, and moisture can interfere with the infrared beam even when both garage door sensors appear correctly positioned.

Use a soft, dry microfiber cloth to gently clean the front of each photo-eye lens.

Avoid these mistakes:

• Do not scratch the lens with a hard object.
• Do not spray water or cleaning chemicals directly onto the sensor.
• Do not pull or bend the sensor wires while cleaning.
• Do not apply excessive pressure to the sensor housing.

After cleaning, check that both lenses are clear and free from visible obstructions. If the sensors still fail to work properly, read our guide on How to Reset Garage Door Sensors Fast: Step-by-Step Guide for additional troubleshooting steps.

Step 4: Check the Sensor Height and Position

Both sensors should face each other at approximately the same height, with their lenses pointing directly across the garage door opening.

Use a tape measure to compare their mounting heights.

If one sensor is noticeably higher, lower, or tilted compared with the other, its mounting position may need adjustment.

Also check that:

• The brackets are not twisted.
• Both lenses have a clear line of sight.
• The sensors are mounted securely.
• Nothing is blocking the space between them.

Do not raise the sensors above the manufacturer’s permitted installation height.

Step 5: Adjust the Sensor Alignment

Restore power only when the area is clear and you are ready to check the indicator lights. Follow your opener’s manual for the correct alignment procedure.

For common Chamberlain and LiftMaster systems with adjustable wing nuts:

1. Identify the sending sensor and receiving sensor.
2. Loosen the receiving sensor’s wing nut slightly.
3. Gently move the sensor until its lens points directly toward the opposite sensor.
4. Watch the receiving sensor’s indicator light.
5. Make small adjustments until the indicator shows a stable signal according to the model’s instructions.
6. If necessary, adjust the sending sensor as directed by the manufacturer.

On many Chamberlain and LiftMaster models, the sending sensor has an amber LED and the receiving sensor has a green LED. Other brands may use different colors and diagnostic signals.

Never assume that a particular LED color means the same thing on every opener.

Step 6: Tighten the Mounting Brackets

Once the sensors are correctly aligned, carefully tighten the wing nuts or mounting screws.

Avoid overtightening because excessive pressure can move the sensor out of position or damage its bracket.

After tightening:

• Check that both sensors remain firmly attached.
• Make sure their lenses still face each other.
• Confirm that the indicator lights remain stable.
• Check that the sensor wires are not pinched or stretched.

If the indicator changes when the bracket is tightened, make a small adjustment and check it again.

Step 7: Check for Sunlight and Other Interference

If the sensor indicators still flicker after adjustment, sunlight or another obstruction may be interfering with the infrared beam.

Check whether:

• Direct sunlight is shining into the receiving sensor.
• A storage box or garden tool is blocking the beam.
• The sensor brackets move when the garage door operates.
• Loose wiring is interrupting the signal.

Some Chamberlain and LiftMaster models allow the sending and receiving sensors to be switched to opposite sides to address direct sunlight interference. Do this only if the manufacturer’s instructions permit it.

Do not cover the sensor lenses or install anything that blocks the safety beam.

Step 8: Restore Power and Test the Safety Sensors

Once the adjustments are complete, restore power to the opener and check the sensor indicators.

Test the photo-eye protection using this procedure:

1. Make sure the garage door opening is clear.
2. Start with the garage door fully open.
3. Use the remote or wall control to begin closing the door.
4. Carefully interrupt the invisible sensor beam with a suitable object, such as a piece of cardboard.
5. The opener should stop the closing movement or reverse the door according to its operating design.

Never use your hand, foot, or any part of your body to test the closing door.

Step 9: Perform the Safety Reversal Test

The photo-eye test and the contact-reversal test are two separate safety checks. Both are important.

After adjusting the sensors, follow the opener manufacturer’s instructions for testing the contact-reversal system.

For many Chamberlain and LiftMaster models, this involves:

1. Opening the garage door completely.
2. Placing a 1½-inch-high test object, or a 2×4 board laid flat, on the garage floor beneath the center of the door.
3. Operating the door in the closing direction.
4. Confirming that the door reverses when it contacts the test object.

Remove the test object after completing the test.

If the door does not reverse correctly, stop using the opener and contact a trained garage door technician. Do not rely on the photo-eye sensors as a substitute for a properly working contact-reversal system.

How to Line Up Garage Door Sensors

To line up garage door sensors, make sure both photo-eye lenses face each other at the correct height. Check the mounting brackets, remove any obstructions, and make small adjustments until the receiving sensor detects a stable infrared signal. Tighten the brackets carefully and test the safety system afterward.

Brand-Specific Garage Door Sensor Alignment

How to Align Genie Garage Door Sensors

Genie garage door sensors should face each other directly across the garage door opening. Check the sensor brackets, clean both lenses, and inspect the indicator lights. Genie models may use different LED signals, so follow the instructions for your specific opener before adjusting the sensors.

How to Align LiftMaster Garage Door Sensors

For most LiftMaster garage door openers, the sending sensor has an amber LED and the receiving sensor has a green LED. Check that both sensors face each other and that the receiving sensor shows a steady green light. If the light flickers or turns off, inspect the alignment, wiring, and sensor path before tightening the brackets.

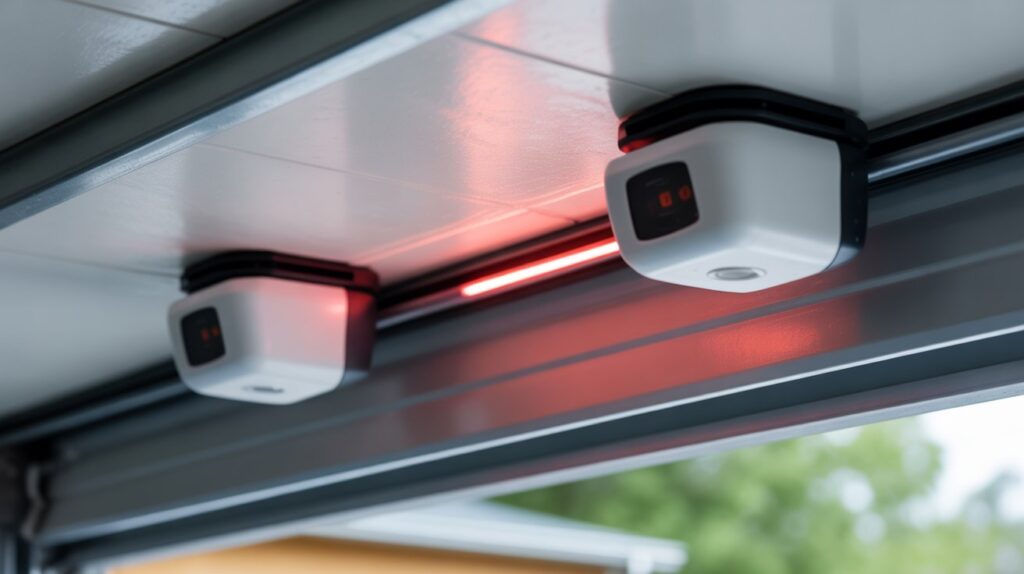

How to Reset Garage Door Sensors

Most garage door photo-eye sensors do not have a separate reset button. If they stop working, disconnect power to the opener according to the manufacturer’s instructions, inspect the wiring, clean the lenses, and check the sensor alignment. Restore power and verify the indicator lights. If the problem continues, consult the opener’s manual or contact a qualified technician.

Common Mistakes to Avoid When Aligning Garage Door Sensors

Small mistakes during sensor adjustment can cause the same garage door closing problem to return. Even when the photo-eye sensors appear to face each other, incorrect positioning, loose brackets, or electrical problems can prevent the safety reversing system from working properly.

Avoid these common mistakes when checking or adjusting your garage door sensors.

1. Overtightening the Sensor Brackets

Tightening the mounting screws or wing nuts too much can move the sensor out of position or damage its bracket. This may interrupt the infrared beam again, even after a successful adjustment.

• Tighten the hardware gradually.
• Keep both sensor lenses facing each other.
• Check the indicator lights after securing the brackets.
• Replace cracked or badly bent mounting brackets instead of forcing them into position.

2. Ignoring Dirt and Debris on the Sensor Lenses

Dust, cobwebs, dried moisture, and insects can collect around the photo-eye lenses. These obstructions may weaken or interrupt the infrared signal.

Clean both lenses with a soft, dry microfiber cloth before making alignment adjustments. Avoid abrasive materials and spraying cleaning products directly onto the sensors.

3. Adjusting the Sensors Without Checking Their Height

Both sensors must be installed at the height specified by the garage door opener manufacturer. Mounting one sensor too high or too low can affect the monitored area beneath the closing door.

Use a tape measure to compare their positions and check the manufacturer’s installation instructions before changing their height.

4. Overlooking Loose or Damaged Sensor Wiring

A wiring problem can produce symptoms similar to incorrect sensor alignment. Moving the sensors will not solve an electrical connection problem.

Inspect the visible low-voltage sensor wires for:

• Loose connections near the sensor terminals.
• Cut, crushed, or exposed insulation.
• Wires pulled out of their mounting clips.
• Signs of moisture or corrosion around connections.

Disconnect power before inspecting or handling wiring. If the wires or electrical connections are damaged, have a qualified technician repair them.

5. Ignoring Direct Sunlight Interference

Strong sunlight can interfere with the receiving photo-eye sensor on some garage door opener systems. This may cause the indicator light to flicker or the door to reverse, even when both sensors appear correctly aligned.

Check whether direct sunlight reaches the receiving lens at certain times of the day, especially during early morning or late afternoon. Follow the manufacturer’s approved instructions for dealing with sunlight interference. Never cover the sensor lens or block its infrared beam.

For more details, read our guide on Should Both Garage Door Sensors Be Green?.

6. Assuming Every Indicator Light Works the Same Way

Different garage door opener brands use different LED colors and diagnostic signals. A green, amber, yellow, or flashing light does not have the same meaning on every model.

Check the owner’s manual for your specific opener before making adjustments. Do not assume that both lights must be solid or that a particular color always confirms correct alignment.

To understand common LED colors and their meanings, read our guide on Garage Door Sensor Yellow Light: What It Means and How to Fix It.

7. Bypassing the Safety Sensor System

Holding the wall control to force the door closed or disconnecting the safety sensors is not a proper repair.

These actions may bypass an important safety feature and increase the risk of entrapment or injury. Keep the sensors connected and operating as intended. If the door will not close normally, identify the fault before using the opener again.

8. Skipping the Final Safety Tests

A garage door that closes normally after adjustment is not automatically safe. The photo-eye sensors and contact-reversal mechanism need to work correctly.

After completing the adjustment:

• Check that both sensor indicators show the correct status for your model.
• Test the photo-eye system according to the manufacturer’s instructions.
• Perform the contact-reversal test using the specified test object.
• Stop using the opener if either safety test fails.

Correcting these mistakes helps keep the sensor system reliable and reduces the chance of repeated closing problems. If the sensors remain unstable or the safety tests fail, arrange a professional inspection rather than repeatedly adjusting the brackets.

Conclusion

Properly aligned garage door safety sensors help your opener close reliably while protecting children, pets, and vehicles from accidental entrapment. Cleaning the photo-eye lenses, checking the mounting brackets, correcting sensor positions, and inspecting the wiring can resolve many common closing problems.

After making adjustments, always test the infrared safety beam and contact-reversal system according to your opener manufacturer’s instructions. If the indicator lights remain unstable or either safety test fails, contact a qualified garage door technician instead of bypassing the sensors.

If your sensor light stays on but you’re still having trouble, read our guide on why your garage door sensor is orange for more troubleshooting information. Regular sensor inspection and proper maintenance can help keep your garage door operating safely.

FAQs

About the Author

M Bilal is a BS criminologist and home security expert who writes about home protection, garage door safety, security cameras, and modern security technology. He focuses on explaining practical security topics in clear, simple language to help homeowners understand common problems and make informed decisions about protecting their homes and families.

His goal is to make home security information useful, easy to understand, and accessible to everyday readers.
